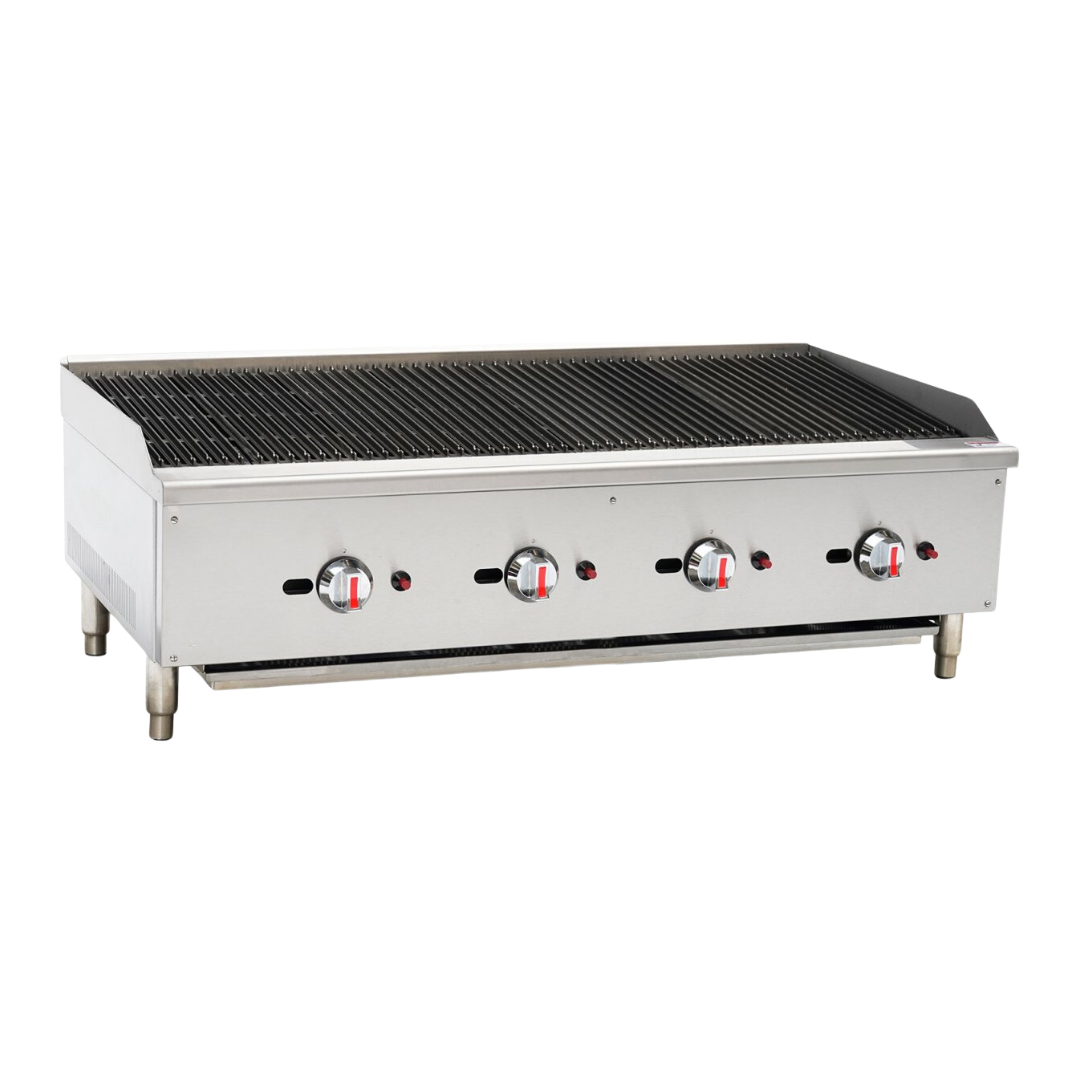

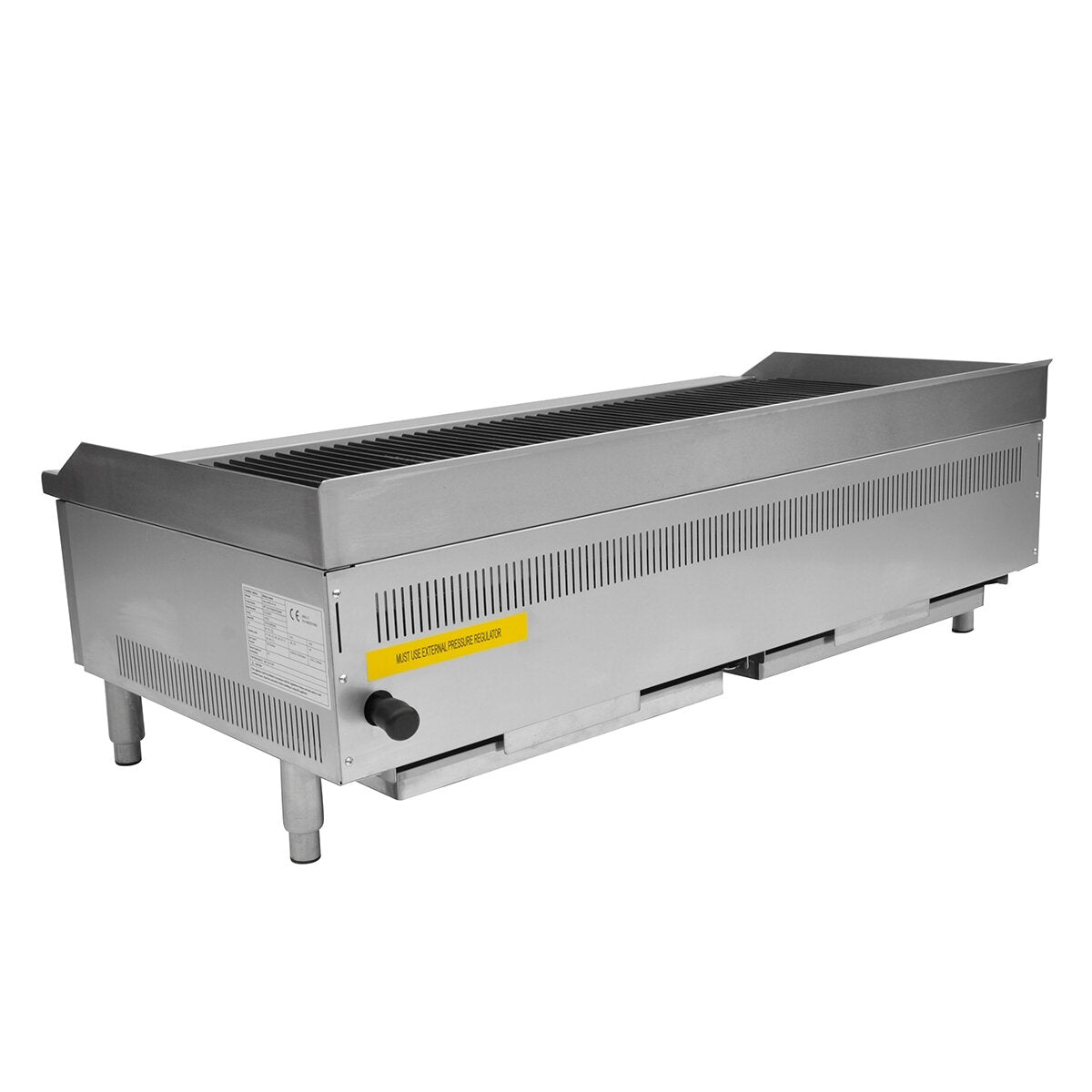

Designed for high-output commercial kitchens, this commercial gas countertop charbroiler combines exceptional grilling performance with maximum cooking flexibility. Featuring four independently controlled cooking zones, it enables chefs to prepare multiple foods at different temperatures simultaneously, making it the ideal choice for busy restaurants, pubs, hotels, cafés, steakhouses and food trucks.

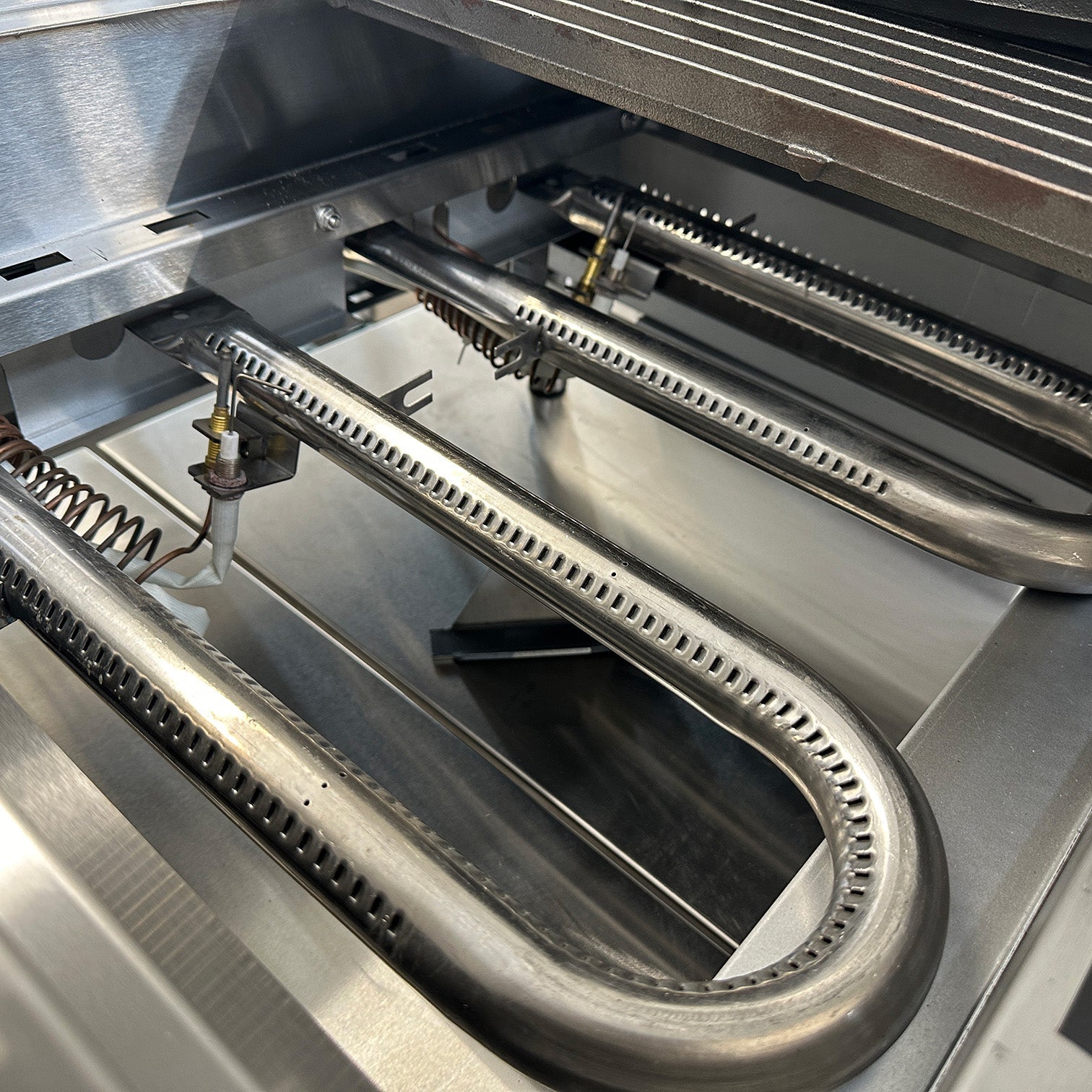

Powered by high-performance 30,000 BTU/hr U-shaped steel burners, each independently controlled across every 12-inch cooking section, this professional charbroiler delivers rapid heat-up times, even heat distribution and authentic chargrilled flavour with distinctive sear marks. The independent controls also help reduce energy consumption by allowing only the required cooking sections to be used during quieter service periods.
Constructed with a durable stainless steel front and galvanised steel sides and rear, this heavy-duty countertop charbroiler is built to withstand the demands of continuous commercial use. Large removable grease collection trays simplify cleaning, while chrome-coated zinc alloy control knobs provide precise and reliable temperature adjustment throughout service.
Whether you're grilling premium steaks, burgers, chicken, seafood or vegetables, this professional gas charbroiler delivers outstanding performance, capacity and reliability.
Key Features
- Commercial gas countertop charbroiler
- Four independently controlled cooking zones
- Powerful 30,000 BTU/hr U-shaped steel burners
- Independent temperature control every 12-inch cooking section
- Heavy-duty stainless steel front construction
- Durable galvanised steel sides and rear
- Excellent heat retention and even heat distribution
- Produces authentic chargrilled flavour and professional grill marks
- Large removable stainless steel grease collection trays
- Chrome-coated zinc alloy control knobs
- Compact countertop design for commercial kitchens
- Easy to clean and maintain
- Ideal for restaurants, cafés, pubs, hotels, steakhouses and food trucks
| Specification |
Details |
| Product Type |
Commercial Gas Countertop Charbroiler |
| Control Type |
Quad Independent Controls |
| Fuel Type |
Natural Gas / LPG (model dependent) |
| Burner Type |
U-Shaped Steel Burners |
| Burner Output |
30,000 BTU/hr Per Burner |
| Heat Zones |
4 Independent Cooking Zones |
| Control Width |
Independent Control Every 12 Inches |
| Front Material |
Stainless Steel |
| Side & Rear Material |
Galvanised Steel |
| Grease Collection |
Large Removable Oil Collectors |
| Control Knobs |
Chrome-Coated Zinc Alloy |
| Installation |
Countertop |
| Application |
Commercial Catering |
This product is covered with a Manufacturer’s 1 Years Parts Warranty.

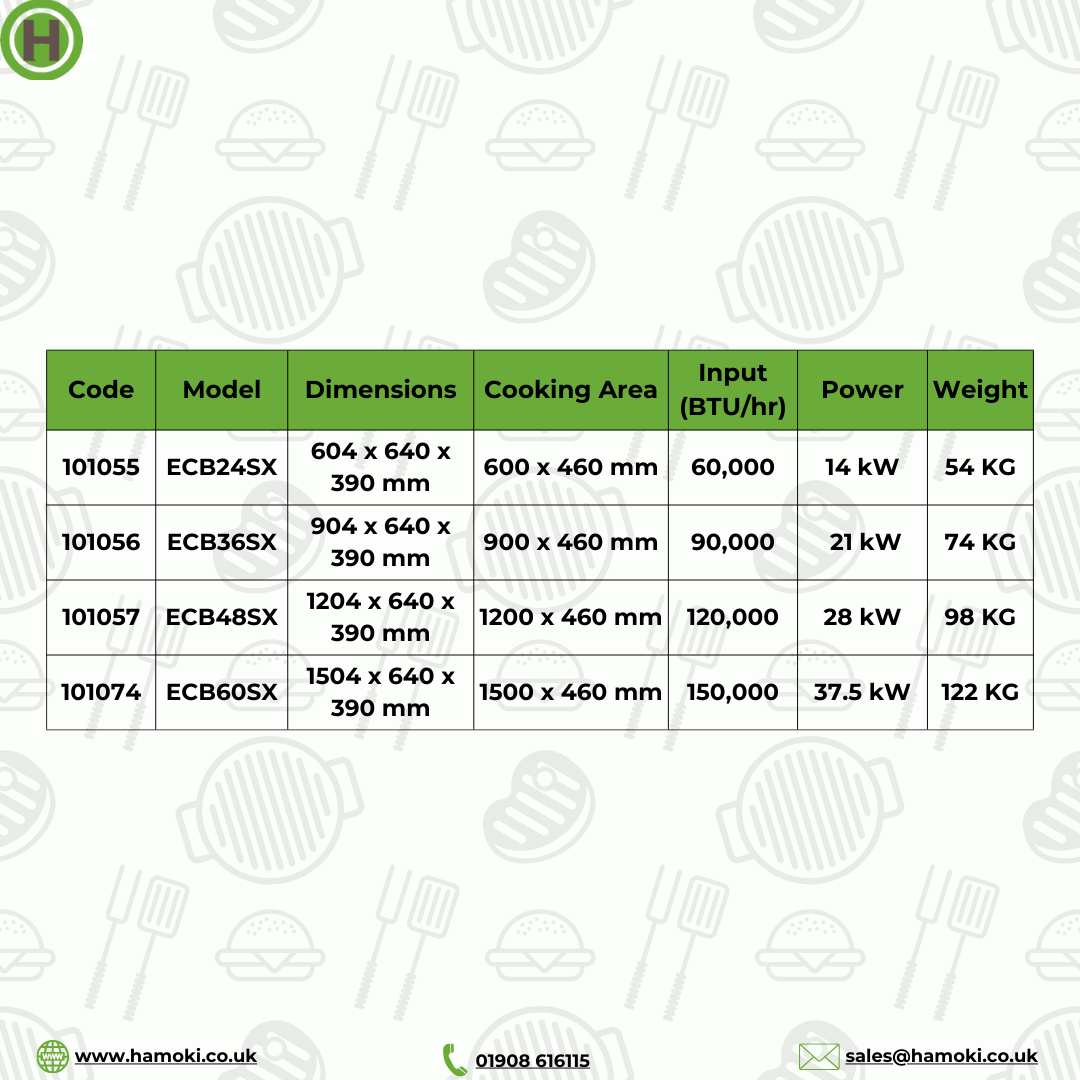

DIMENSIONS (WxDxH): 1204 x 640 x 390 mm
WEIGHT: 98 KG
POWER: 28 kW
COOKING AREA: 1200 x 460 mm
BTU/HR: 120,000
MATERIAL: Stainless Steel
CONNECTION: 1 x 3/4″ NPT Rear Gas Connection
EXPLODING DRAWING
OVERALL DRAWING
Model Number: ECB-48SX
