130 Litre Heavy-Duty Commercial Floor Standing Spiral Mixer

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

DIMENSIONS (WxDxH): 700 x 1100 x 1500 mm
BOWL CAPACITY: 130 L
KNEADING CAPACITY: 50 KG
ROTATION LOW SPEED: 120 RPM
ROTATION HIGH SPEED: 240 RPM
BOWL SPEED: 20/40 RPM
WEIGHT: 400 KG
POWER: 5.6 kW / 415 V / 50 Hz
CONNECTION: Three-phase hard wired

INSTRUCTION MANUAL
CIRCUIT DIAGRAM
EXPLODED DRAWING & PARTS LIST

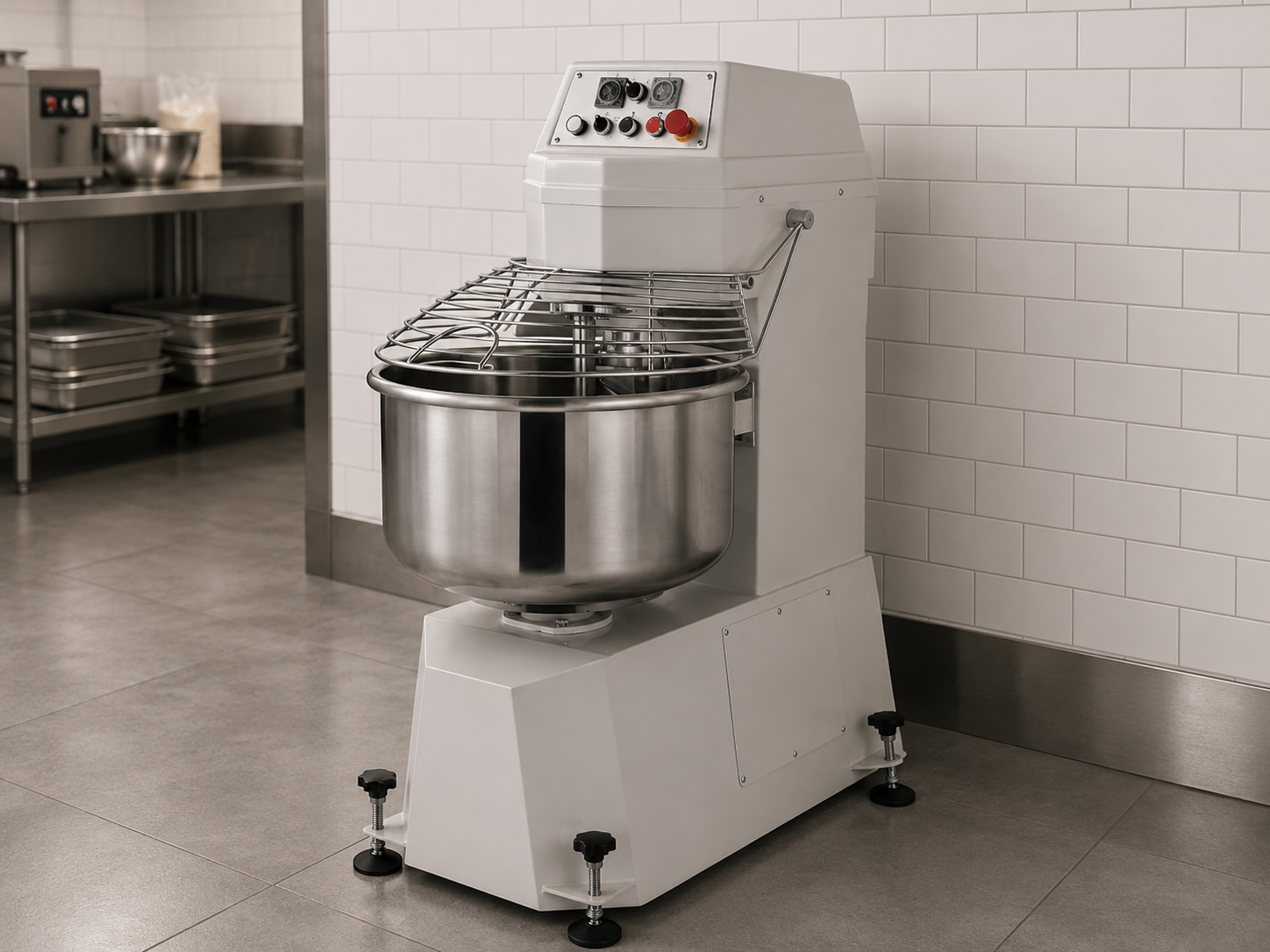

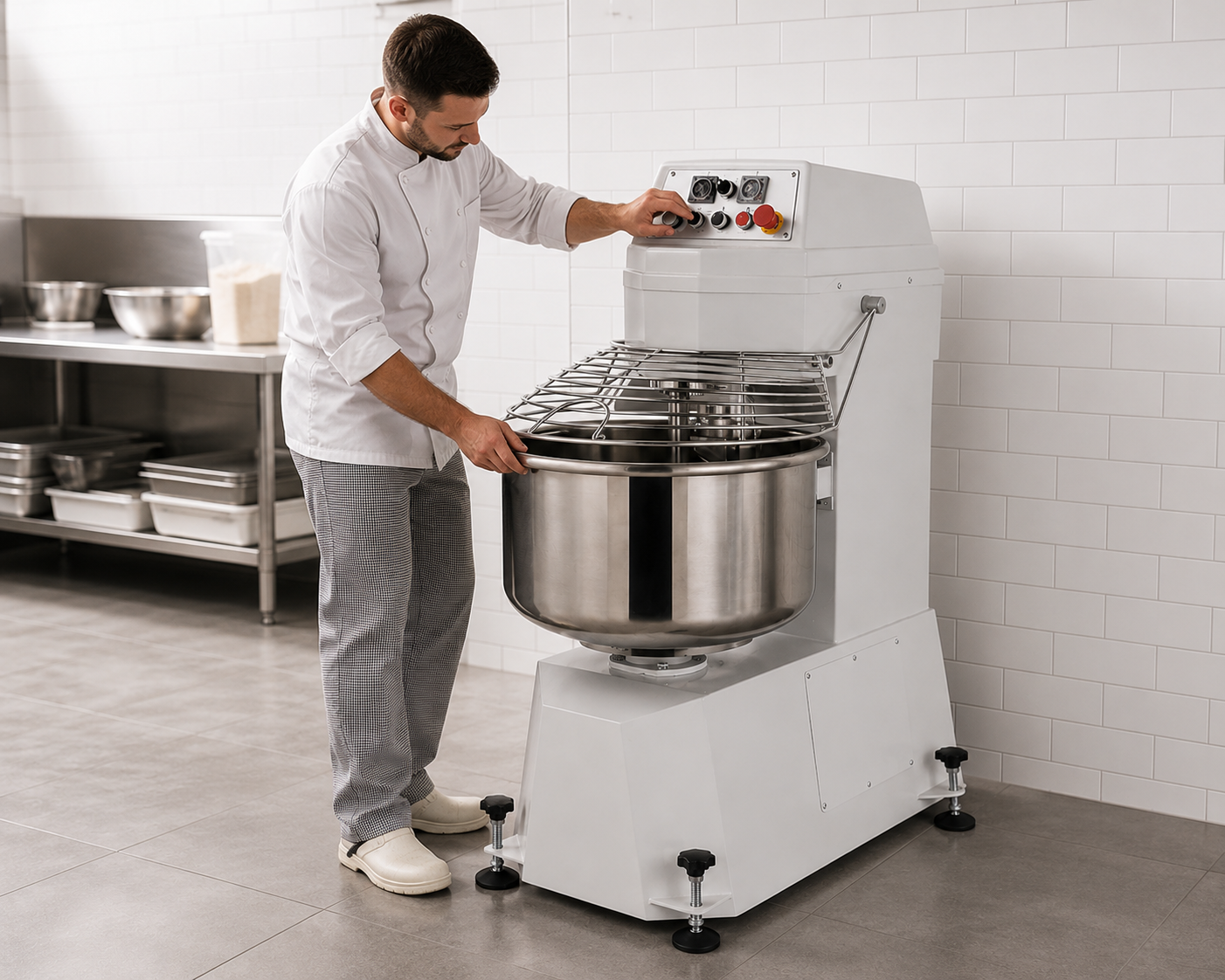

The Hamoki Commercial Heavy-Duty Floor Standing Spiral Mixer is a high-capacity, multi-purpose mixing machine designed for demanding production environments. Featuring a 130-litre stainless steel bowl, two-speed operation and programmable automatic controls, it is suitable for commercial kitchens, bakeries, food production facilities and other professional mixing applications.

Its spiral mixing arms efficiently knead, mix and blend a range of dough types and ingredients. The spiral mixing action supports thorough and consistent results, helping produce dough with an even texture and effective gluten development.

The mixer features two speed settings, allowing operators to select a slower speed for more delicate mixtures or a faster speed for heavier and denser batches. The mixing arm and bowl can rotate simultaneously, helping improve mixing efficiency and reduce processing time.

A bowl direction reversal function provides additional control over the mixing process. Settable programmes allow selected mixing cycles to operate automatically, while adjustable timers and indicator lights help operators monitor and manage production.

The floor-standing design is engineered to provide stability when handling larger batches. It is fitted with two directional castors, one mecanum wheel and four regulating screws positioned at the front and rear. This arrangement supports easier movement when required while allowing the machine to be stabilised during operation.

The stainless steel bowl provides a durable and hygienic mixing area. A stainless steel safety guard helps protect operators while allowing the mixing process to be monitored.

For added operational safety, the mixer includes an emergency stop button and motor overload protection. Its straightforward controls, programmable operation and high-capacity construction make it suitable for businesses requiring dependable and repeatable large-batch mixing.

Key Features

• Hamoki heavy-duty commercial spiral mixer
• Floor-standing design
• 130-litre stainless steel bowl
• Spiral mixing arms
• Two-speed operation
• Bowl direction reversal
• Mixing arm and bowl can rotate simultaneously
• Designed to improve mixing efficiency
• Settable programmes for automatic operation
• Adjustable timers
• Indicator lights
• Stainless steel safety guard
• Emergency stop button
• Motor overload protection
• Two directional castors
• One mecanum wheel
• Four regulating screws at the front and rear
• Mobile design for easier positioning
• Suitable for high-capacity production
• Easy-to-use commercial controls
