Commercial Countertop Electric Fryer Twin Tank 2 × 9.5 Litre with Drain Taps

DIMENSIONS (WxDxH): 630 x 505 x 350 mm
FRYER BASKET SIZE (WxDxH): 220 x 210 x 120mm
BASKET: 2
DRAIN TAP: Yes
TEMPERATURE: 60～200℃
WEIGHT: 13 KG
MAX FOOD CAPACITY: 0.8 KG
MAX OIL CAPACITY: 9.5 + 9.5 Ltr
TANK CAPACITY: 13 + 13 Ltr
POWER: 3+3 kW / 220-240 v / 50 Hz
POWER SUPPLY: 2 x 13 Amp 3-pin plug

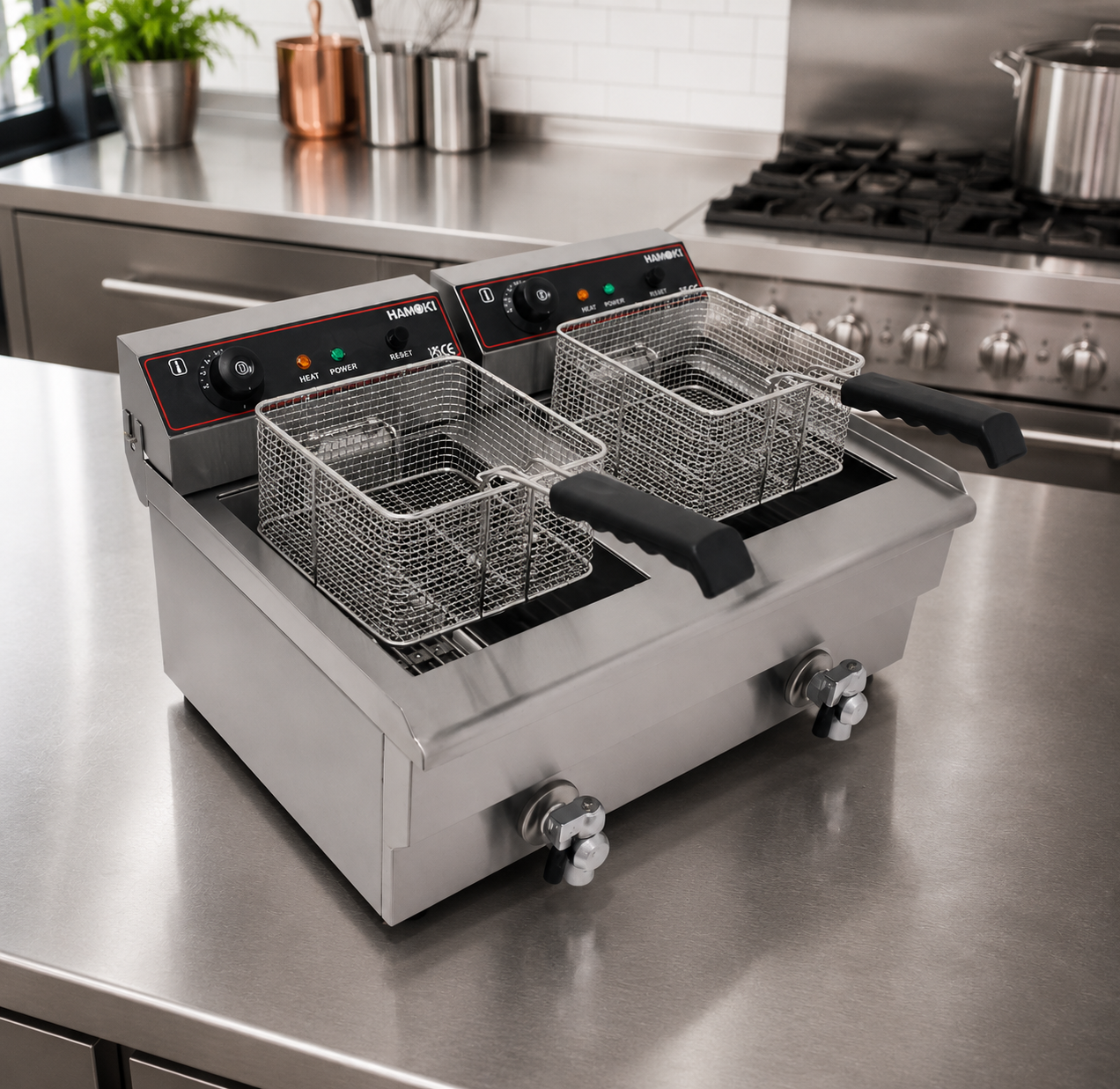

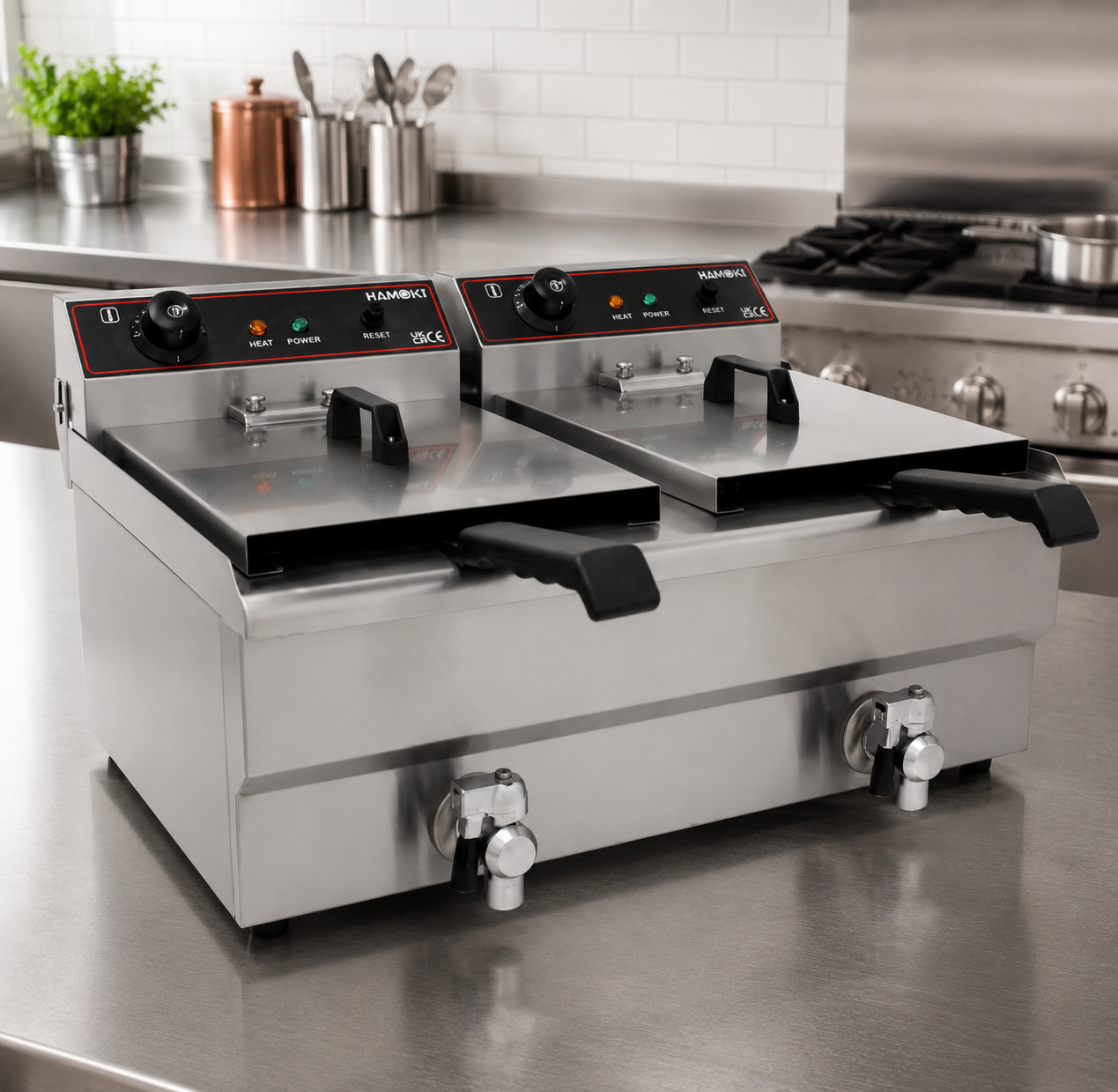

The Hamoki Commercial Countertop Electric Fryer features two independent 9.5-litre oil tanks, providing a combined oil capacity of 19 litres for flexible frying in restaurants, cafés, takeaways, pubs and professional catering kitchens.

Part of the updated Hamoki EF-V-P range, this twin-tank fryer combines a compact countertop format with a refreshed exterior and practical improvements to safety, durability and day-to-day usability.

The two separate tanks allow operators to cook different food types at the same time while helping to reduce flavour transfer. One tank can also be used independently during quieter service periods, while both tanks can be operated when demand increases.

Each tank is fitted with an adjustable EGO thermostat, allowing the cooking temperature to be controlled between 60°C and 200°C. Automatic heat cycling helps regulate oil temperature during service and supports consistent frying results across repeated batches.

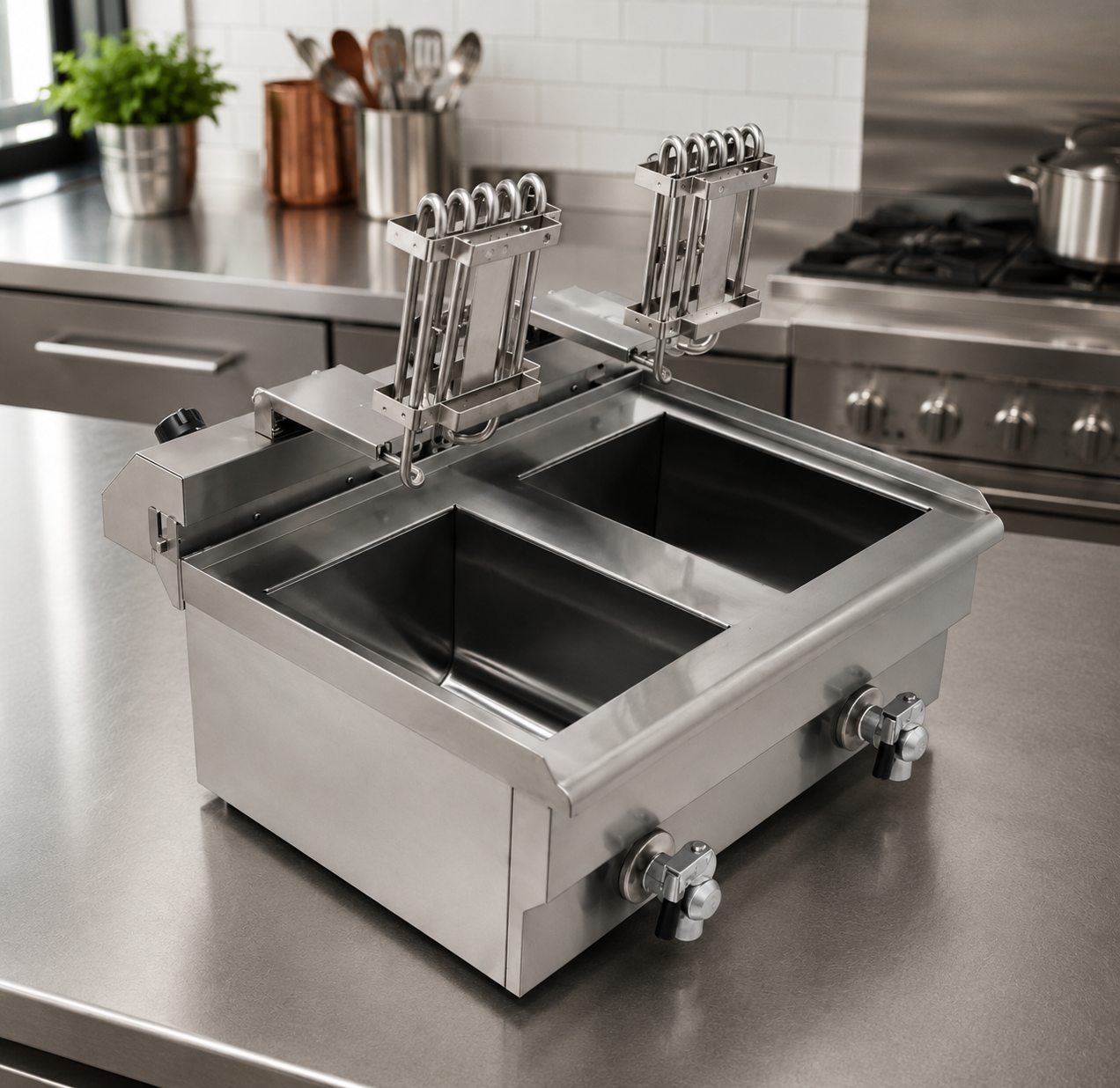

The redesigned heating heads feature lift-up and rotating mechanisms, providing improved access to the tanks for cleaning and routine maintenance. Each heating head also works with an internal microswitch safety interlock that automatically cuts electrical power when the head is lifted.

This built-in safety feature helps protect operators during cleaning, oil changes and maintenance while improving alignment between the heating head and microswitch system.

Manufactured from quality stainless steel, the fryer is designed for regular commercial use while remaining hygienic and straightforward to clean. Integrated drain taps allow oil to be removed from each tank more easily and with greater control.

Combining twin independent tanks, precise temperature control and improved heating-head safety systems, this Hamoki countertop fryer is a practical choice for professional kitchens requiring flexible, space-efficient frying equipment.

• Hamoki commercial countertop electric fryer
• Twin-tank configuration
• Two independent 9.5-litre oil tanks
• 19-litre total oil capacity
• Integrated drain tap for each tank
• Adjustable EGO thermostats
• Independent temperature control
• Temperature range from 60°C to 200°C
• Automatic heat cycling
• Lift-up and rotating heating heads
• Internal microswitch safety interlock system
• Automatic power cut-off when a heating head is raised
• Improved access for cleaning and maintenance
• Durable stainless steel construction
• Compact, space-saving countertop design
• Suitable for professional commercial kitchens

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

CIRCUIT DIAGRAM
EXPLODED VIEW AND PARTS LIST

Model Number: EF-132V-P
