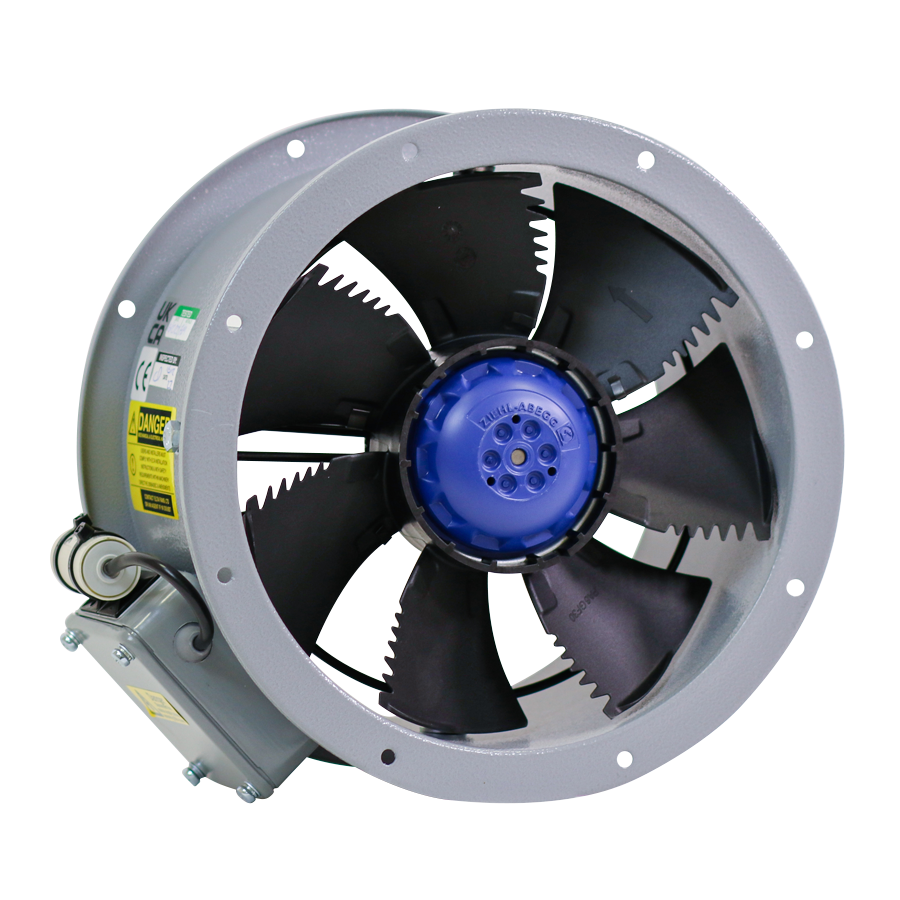

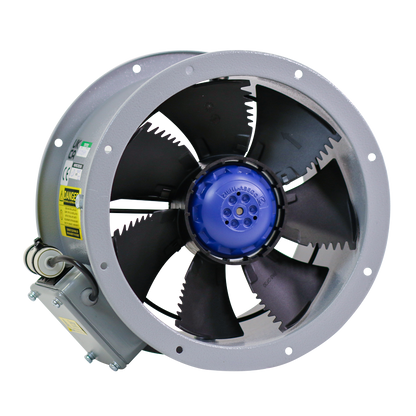

Elta Raptor SDA Short Cased 250mm - 630mm Axial Flow Extract Fan AC/EC

Available Sizes: 250mm to 630mm
Maximum Airflow: Up to 4.60m³/s
Maximum Static Pressure: Up to 290 Pa
Maximum Operating Temperature: Up to +70°C
Motor Options: AC or High-Efficiency EC
Motor Protection: IP44 / IP54 Depending on Size
Terminal Box Protection: IP55
Speed Control: Available
Warranty: 12 Months

The Elta Raptor SDA Short Cased Axial Flow Fan is a compact, high-performance ventilation fan designed primarily for duct-mounted commercial and industrial ventilation systems. Combining high airflow performance, low noise levels and a space-saving short-cased design, the SDA is an excellent solution where efficient air movement is required without the installation footprint of a traditional long-cased axial fan.

Available in 8 standard sizes from 250mm to 630mm, the Raptor SDA range can deliver airflow rates of up to 4.60m³/sand static pressures of up to 290 Pa. Selected configurations are suitable for operating temperatures of up to +70°C, providing excellent versatility across a wide range of professional ventilation applications.

High-Efficiency, Low-Noise Performance

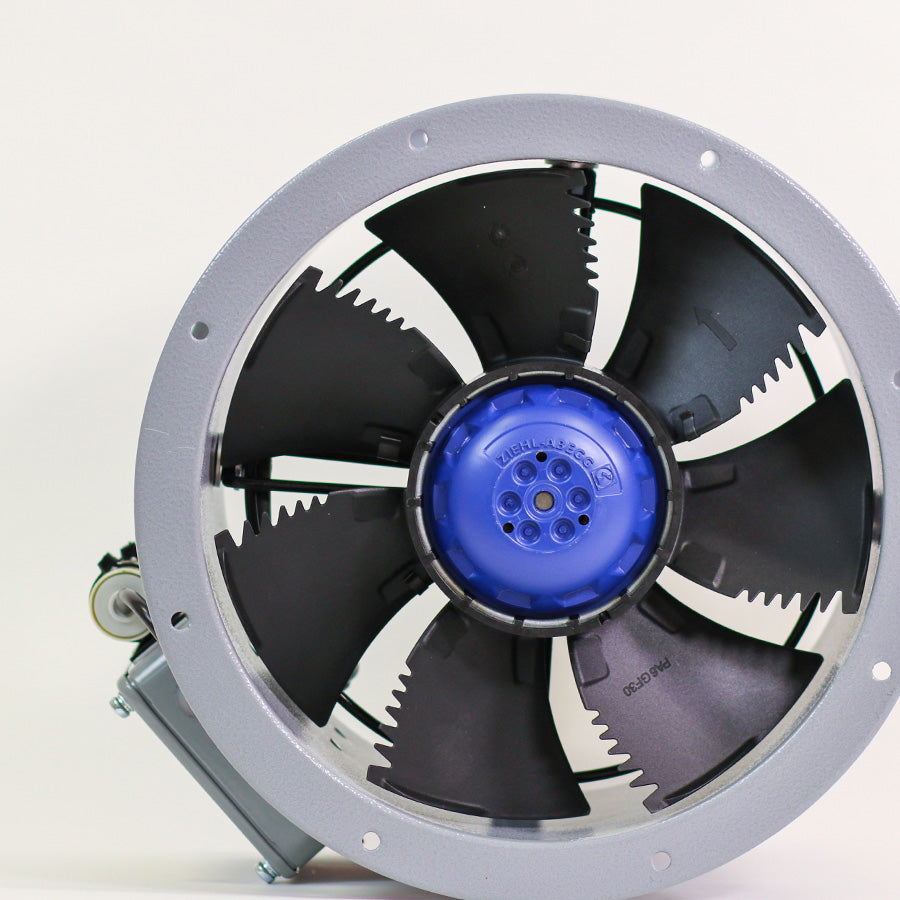

At the heart of the Raptor SDA is the Ziehl-Abegg FE2owlet aerofoil-profiled impeller. Its sickle-shaped blades incorporate serrated trailing edges and winglets developed using bionic design principles to provide strong aerodynamic performance while reducing operational noise.

Impellers are manufactured from pressure die-cast aluminium or high-performance composite material, depending on the selected model, and are dynamically balanced to ISO 14694 for smooth and dependable operation.

AC & High-Efficiency EC Motor Options

The Raptor SDA is available with both AC and energy-efficient EC motor technology, allowing the appropriate configuration to be selected according to the installation.

EC versions provide excellent energy efficiency alongside built-in motor protection and straightforward commissioning, while AC external-rotor motor variants provide a robust alternative for conventional ventilation systems.

All motors feature Class F insulation and integral thermal overload protection. Models from 250–350mm have IP44 motor protection, while 400–630mm models are rated to IP54.

Robust Commercial Construction

The fan features a durable all-metal mild steel casing and protective guard, specially treated to provide excellent corrosion resistance.

The casing is finished in Telegrey 1 (RAL 7045) polyester epoxy powder coating, while the protective guard uses a contrasting black RAL 9005 finish, creating a robust unit suitable for demanding professional installations.

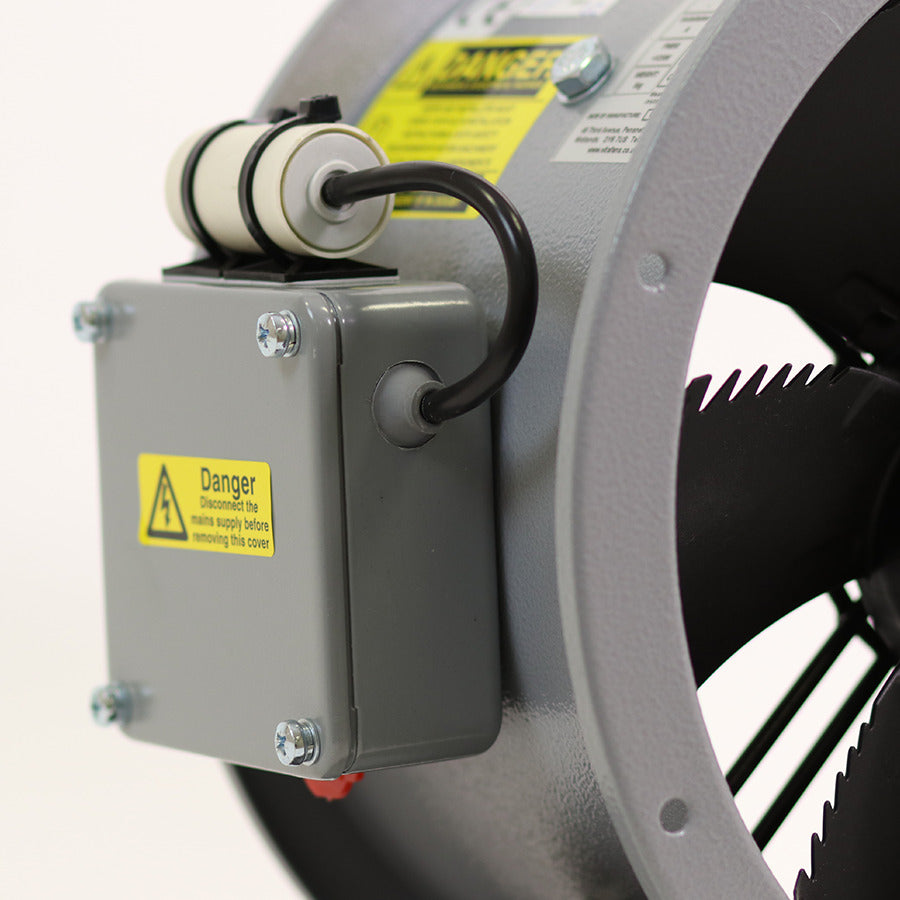

Electrical installation is simplified by an easily accessible IP55 terminal box, allowing convenient connection to the incoming electrical supply.

Flexible Speed Control

All Raptor SDA fans are suitable for speed control, with the exact control method depending on the selected motor and model.

Compatible options include electronic variable control, stepped transformer control, potentiometer control and 0–10V control, allowing airflow to be adjusted according to ventilation demand and potentially reducing unnecessary energy consumption.

Key Features

• Short cased axial flow fan
• Designed primarily for duct-mounted installations
• 8 standard sizes from 250mm to 630mm
• Maximum airflow of up to 4.60m³/s
• Static pressure of up to 290 Pa
• Suitable for operating temperatures up to +70°C
• Available with AC or high-efficiency EC motors
• Ziehl-Abegg FE2owlet aerofoil impeller
• Sickle-shaped blades with serrated trailing edges and winglets
• Designed for low-noise operation
• High aerodynamic efficiency
• Pressure die-cast aluminium or high-performance composite impellers
• Dynamically balanced to ISO 14694
• Robust all-metal construction
• Corrosion-resistant powder-coated casing
• Class F motor insulation
• Integral thermal overload protection
• IP44 motor protection on 250–350mm models
• IP54 motor protection on 400–630mm models
• Easily accessible IP55 terminal box
• Multiple speed-control options depending on model
• Air performance tested to ISO 5801
• Sound performance tested to BS ISO 13347-1
• Manufactured under BS EN ISO 9001 procedures
• 12-month manufacturer's warranty
