Hamoki GF150 Commercial 5 Burner Gas Fryer with Twin Baskets

DIMENSIONS: 534 x 767 x 1182 mm
FRYER BASKET SIZE: 235 x 311 x 165 mm
POWER: 44 kW
CAPACITY: 37 Litres
WEIGHT: 82 KG
INPUT BTU/hr: 150,000
MATERIAL: Stainless Steel
CONTROL UNIT: Toggle

The Hamoki GF150 Commercial 5 Burner Gas Fryer is a heavy-duty, freestanding fryer designed for restaurants, takeaways, hotels, cafés and high-volume commercial kitchens. Its single stainless steel frying tank, powerful gas burner system and twin baskets make it suitable for preparing consistent batches of chips and other fried foods during busy service periods.

Constructed from stainless steel, this commercial fryer is designed for durability, hygiene and straightforward routine cleaning. The integrated splashback helps contain oil splashes around the rear of the cooking area, while the stainless steel vat provides a robust frying chamber for regular professional use.

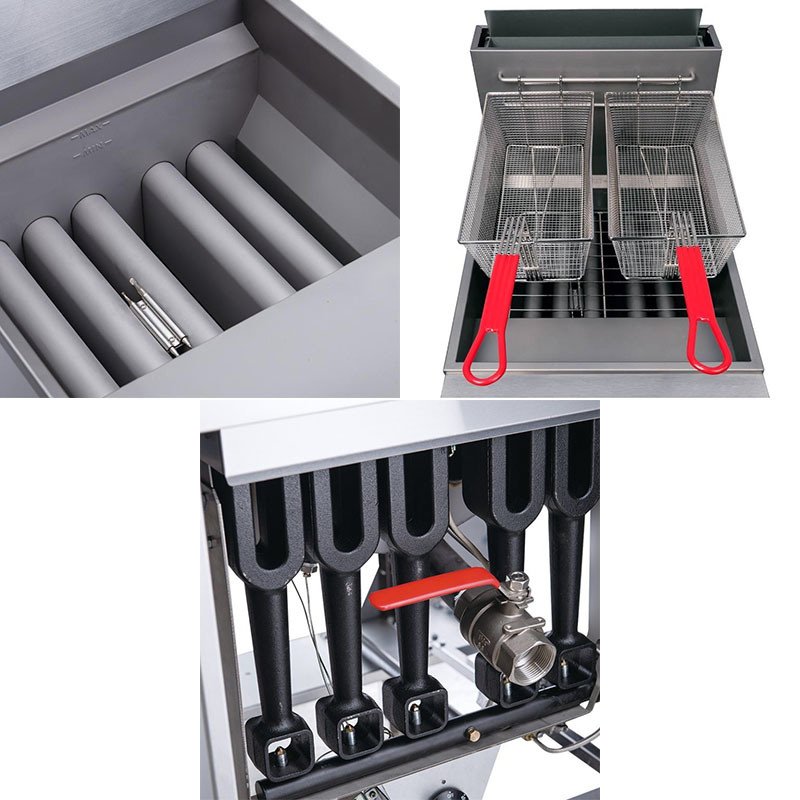

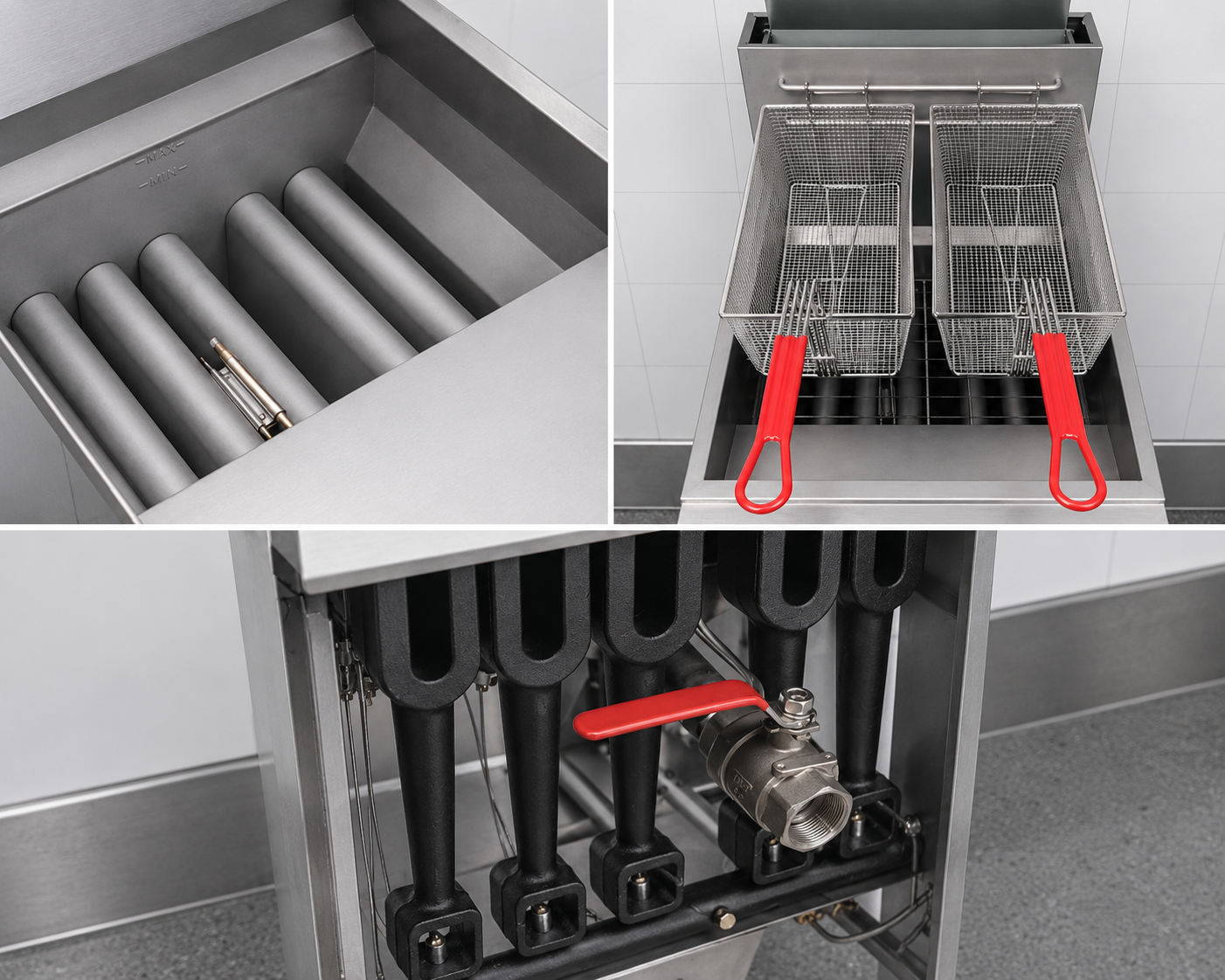

The fryer is equipped with five vertical cast-iron gas burners, each rated at 30,000 BTU per hour. Its tube-style heating system incorporates internal baffles to improve heat transfer through the cooking oil and support prompt temperature recovery between batches. This helps maintain effective frying conditions during continuous service.

A large cold zone beneath the active frying area allows food particles to settle away from the hottest part of the tank. This helps reduce scorching of crumbs and cooking residue at the bottom of the fryer.

Temperature is managed through a Robertshaw control system, with an adjustable thermostat operating between 93°C and 204°C. A high-limit safety device activates at 232°C to help protect the fryer against excessive temperatures.

A continuous pilot supports convenient ignition of the main flame, while the integrated drain valve allows used cooking oil to be removed more efficiently during cleaning and maintenance.

The fryer is supplied with two chrome-plated baskets featuring plastic-coated handles for safer and more comfortable handling. Heavy-duty six-inch stainless steel legs provide a stable freestanding installation and can be adjusted to help level the appliance on uneven floors. Optional castors may also be available where a more mobile configuration is required.

Combining powerful gas heating, responsive temperature recovery and practical maintenance features, the Hamoki GF150 is suitable for professional kitchens requiring a reliable, high-capacity frying solution.

Key Features

• Hamoki heavy-duty commercial gas fryer
• Freestanding design
• Single stainless steel frying tank
• Five vertical cast-iron burners
• Each burner rated at 30,000 BTU per hour
• Tube-style heating system with internal baffles
• Designed for efficient heat transfer
• Prompt temperature recovery between batches
• Large cold zone helps reduce scorching of food particles
• Robertshaw control system
• Adjustable thermostat from 93°C to 204°C
• High-limit safety protection at 232°C
• Continuous pilot for convenient ignition
• Integrated rear splashback
• Drain valve for easier oil removal
• Two chrome-plated frying baskets
• Plastic-coated basket handles
• Six-inch stainless steel adjustable legs
• Height-adjustable feet
• Optional castors available

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

INSTRUCTION MANUAL
OVERALL DRAWING
EXPLODED DIAGRAM & PARTS LIST
TANK DRAWING

Model Number: GF150
