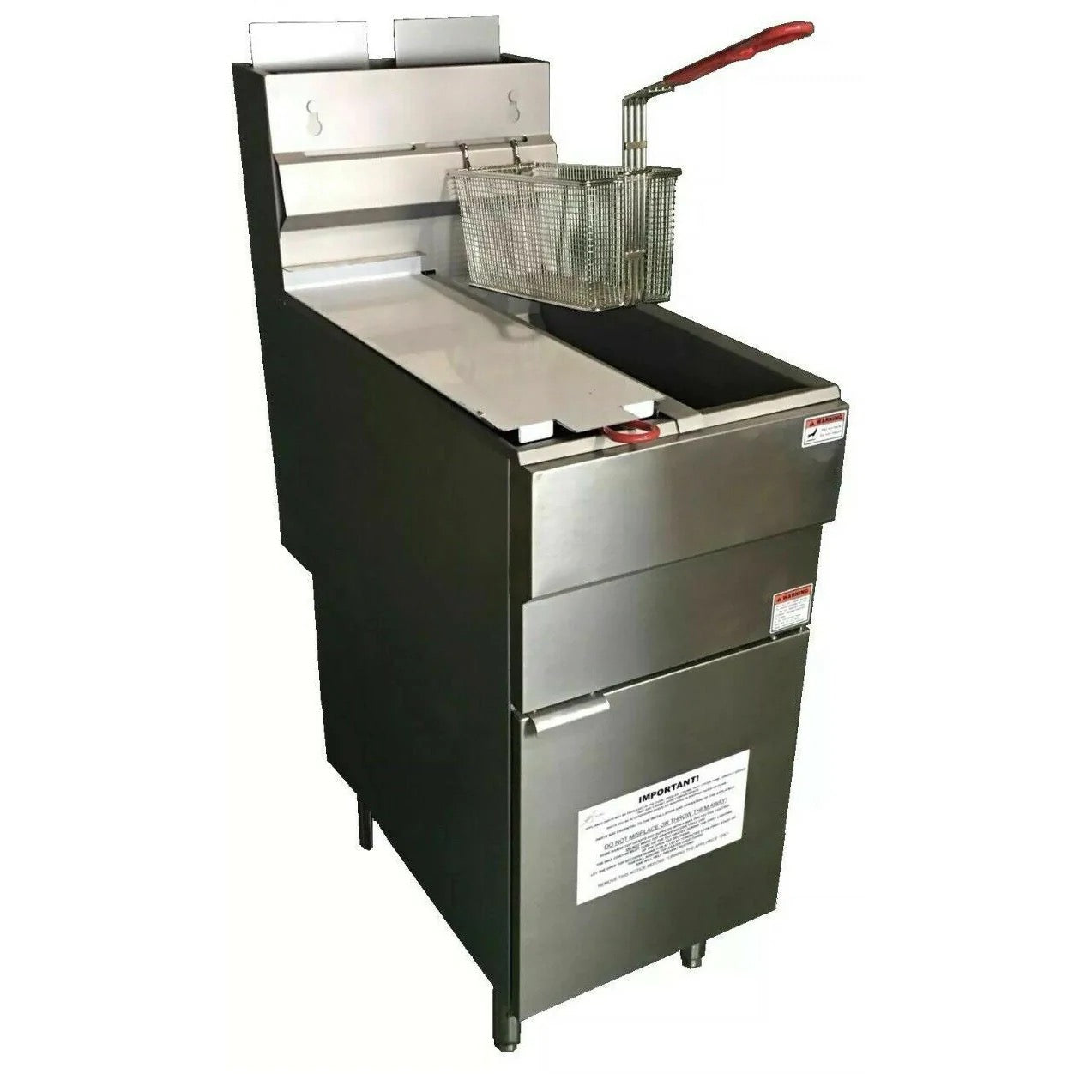

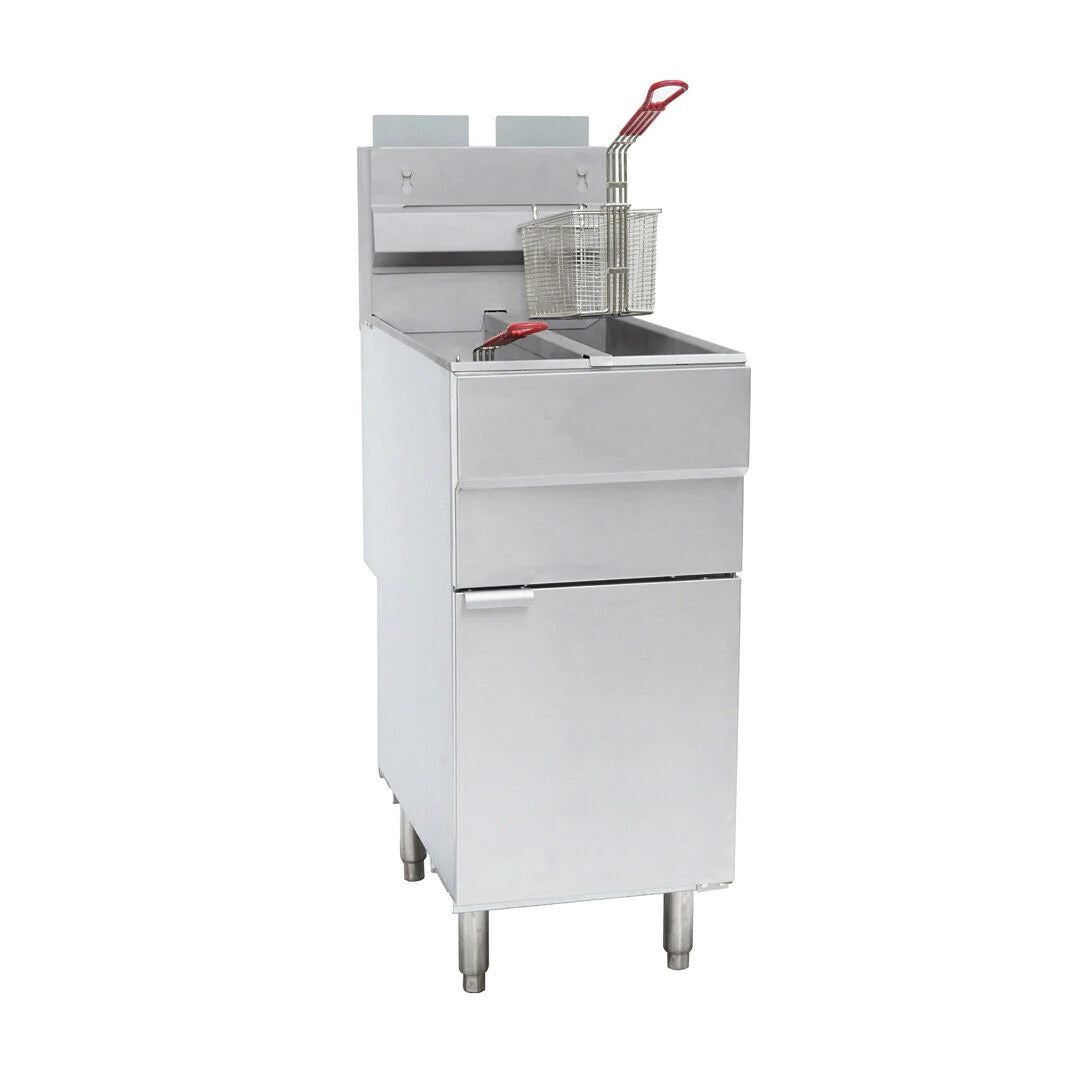

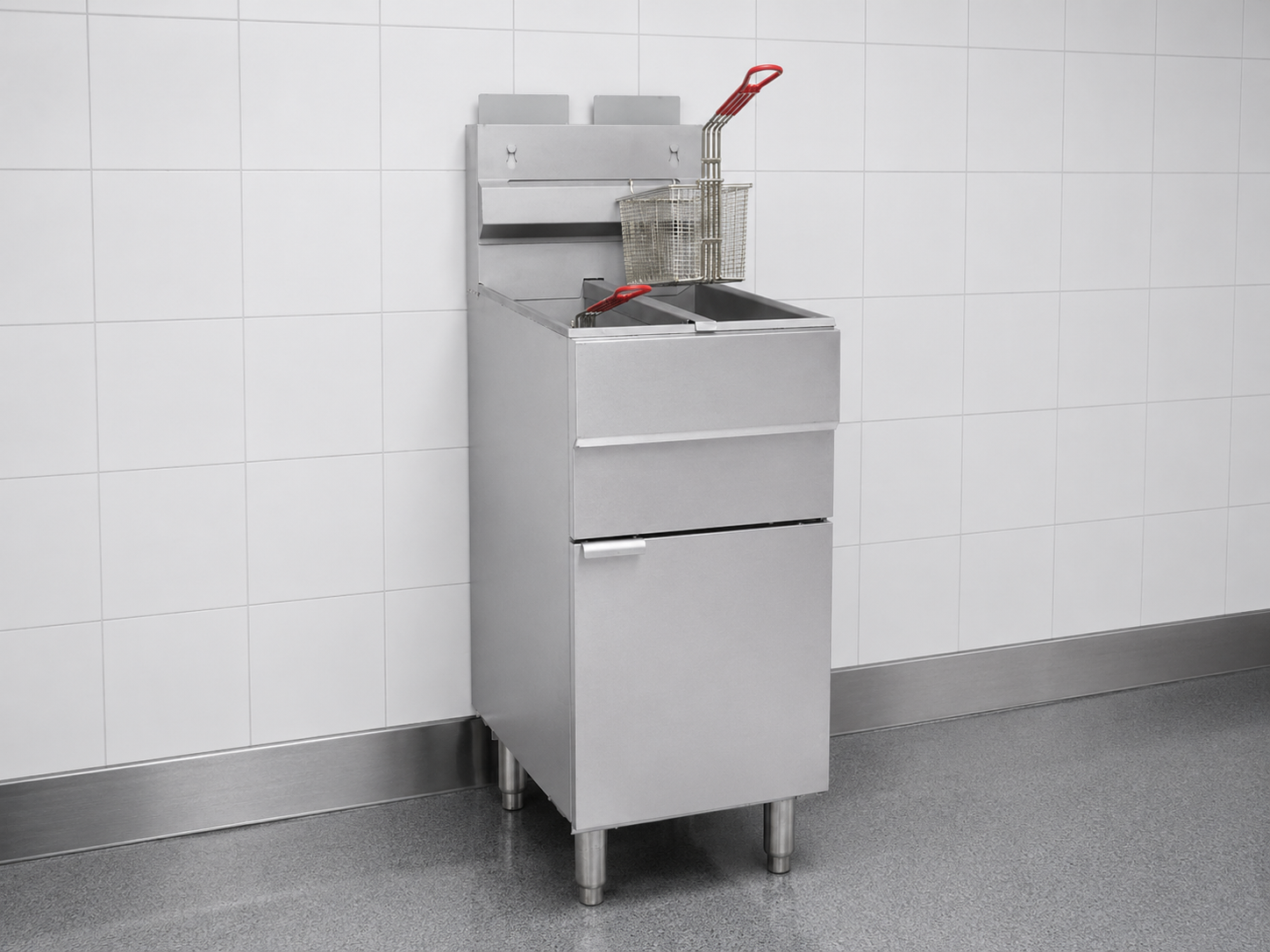

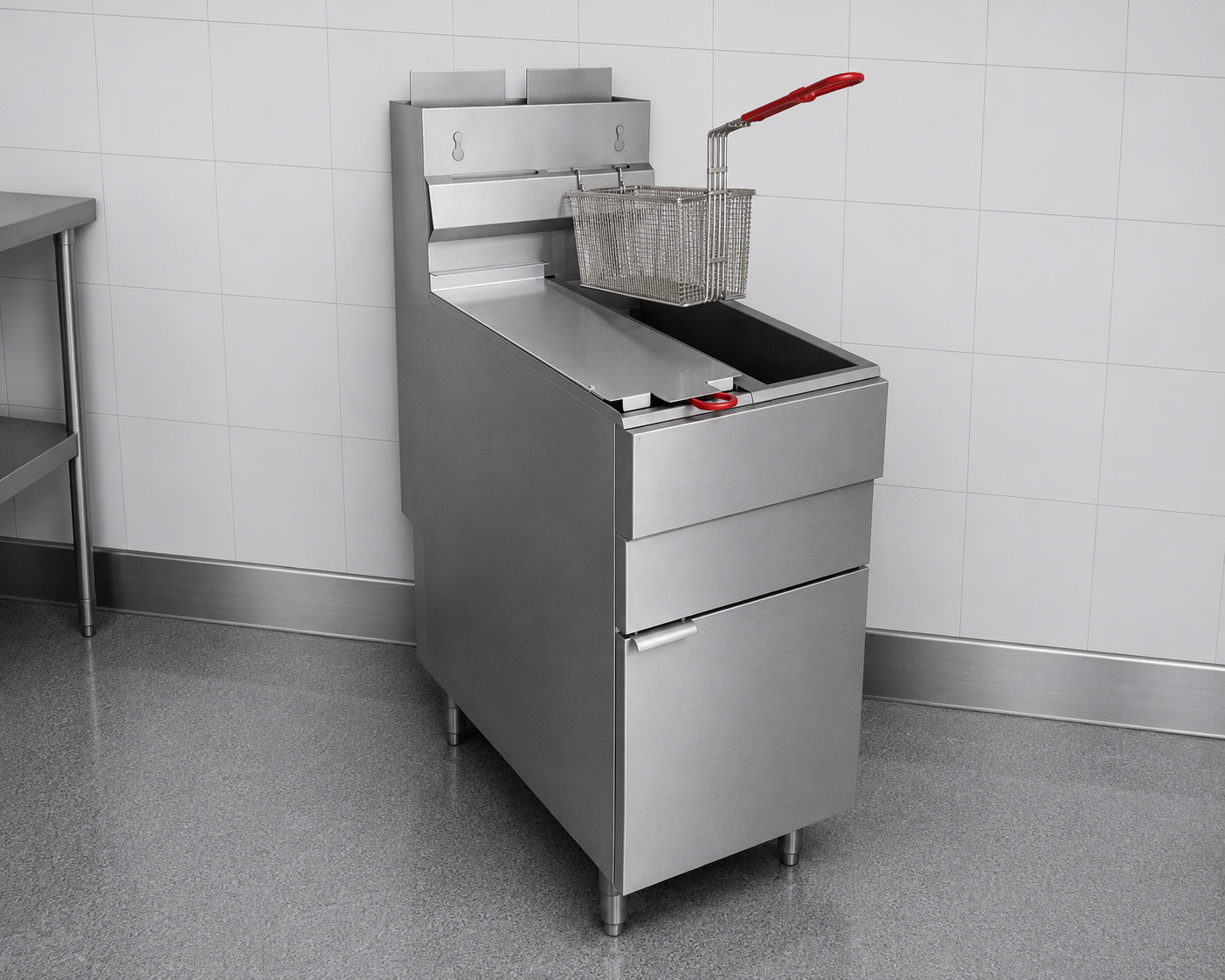

Hamoki GF120T Commercial 4 Burner Twin Tank Gas Fryer with Twin Baskets

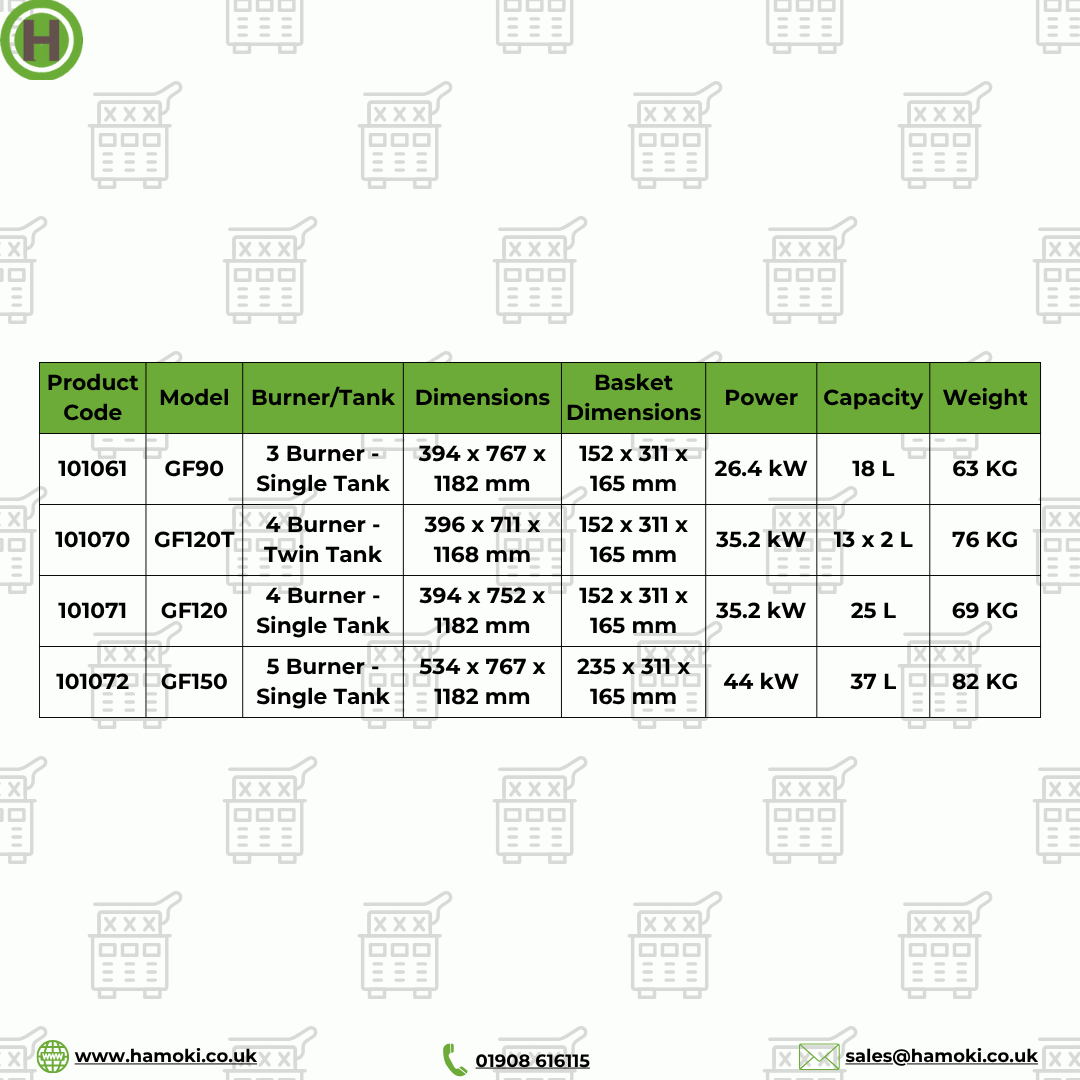

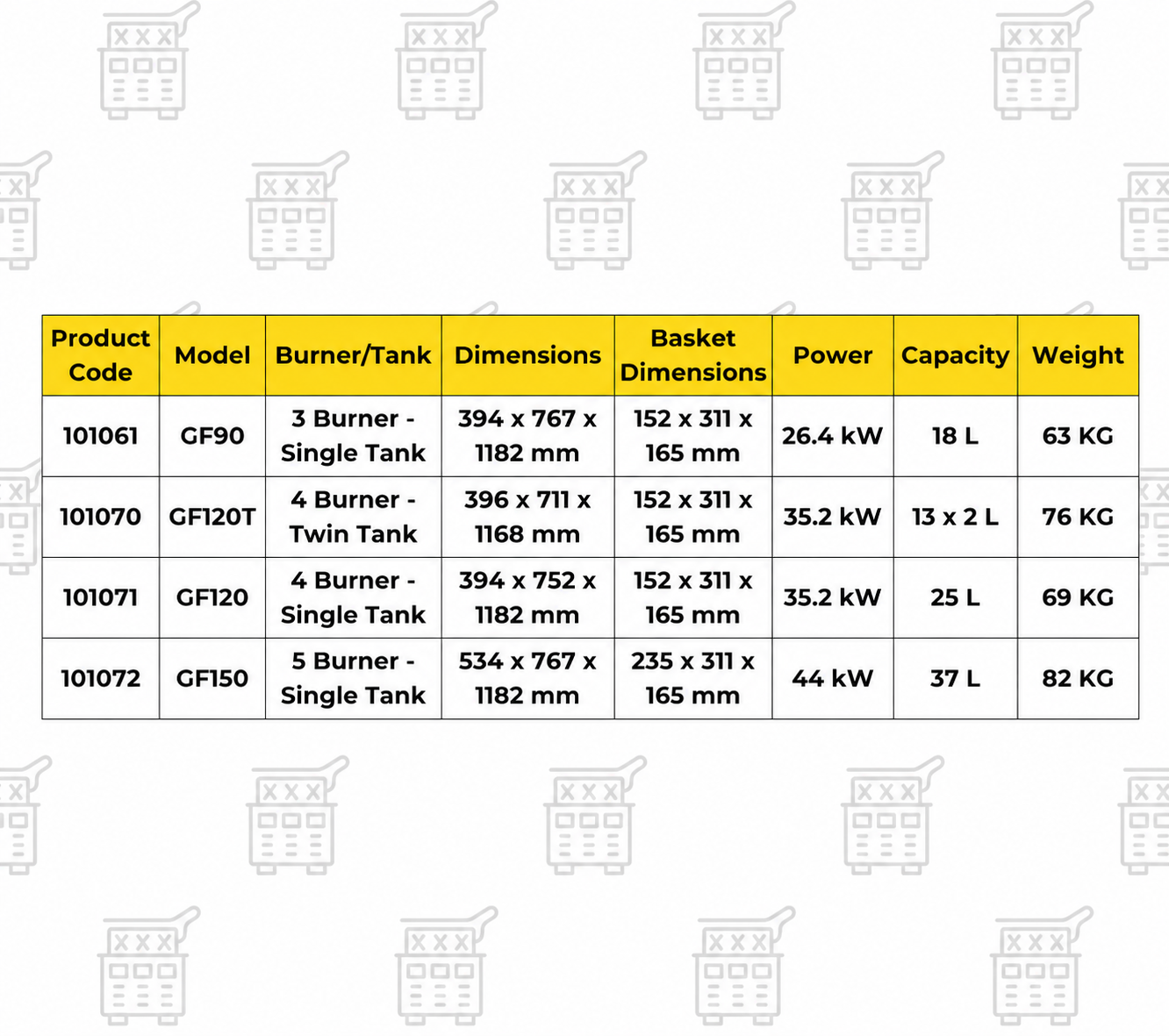

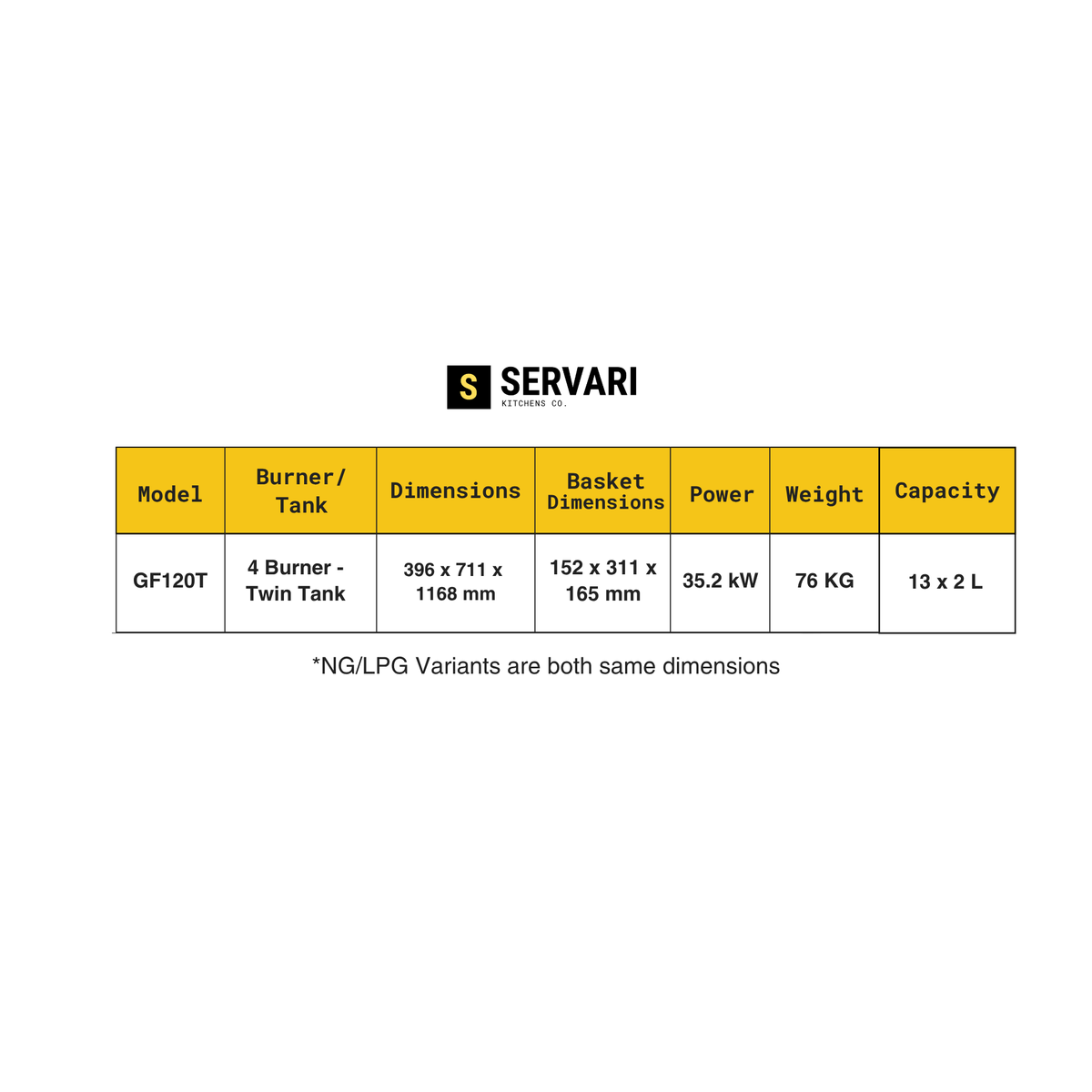

DIMENSIONS: 396 x 711 x 1168 mm

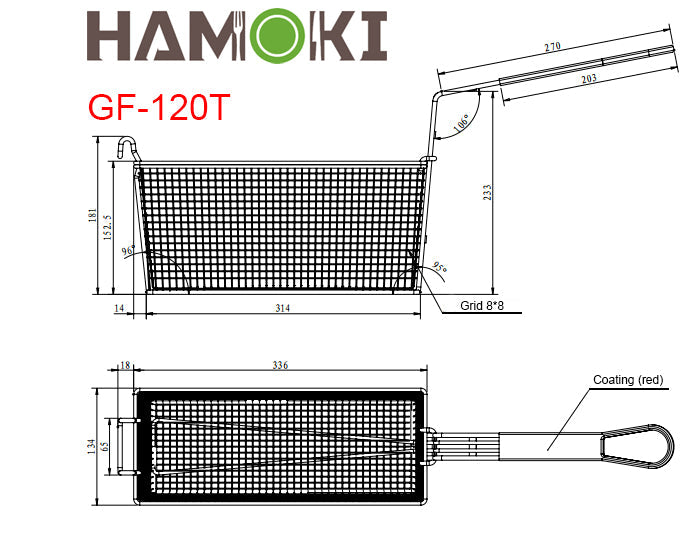

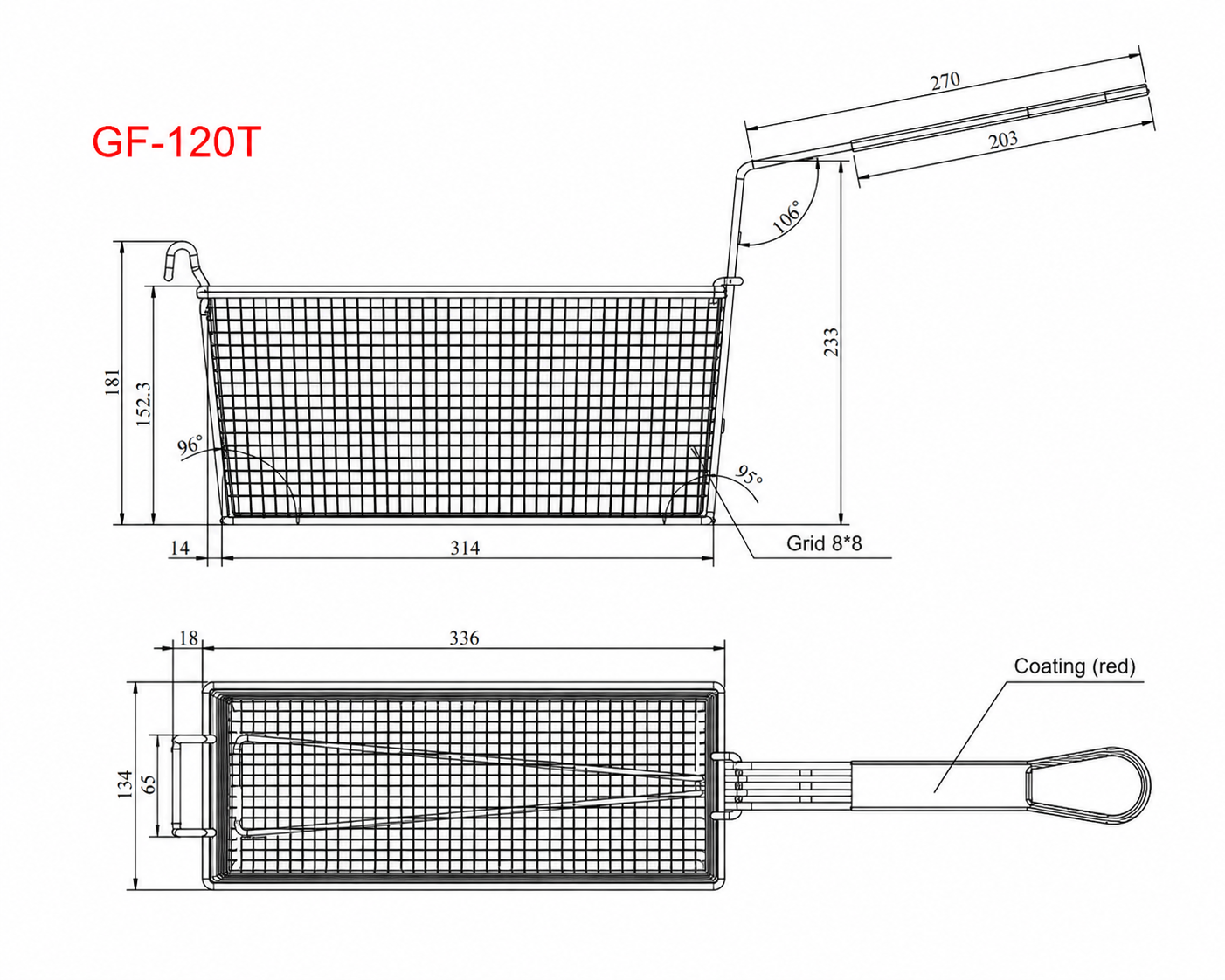

FRYER BASKET SIZE: 152 x 311 x 165 mm
POWER: 35.2 kW
CAPACITY: 11-13 x 2 Litres
WEIGHT: 76 KG
INPUT BTU/hr: 120,000
MATERIAL: Stainless Steel
CONTROL UNIT: Toggle

The Hamoki GF120T Commercial 4 Burner Twin Tank Gas Fryer is a heavy-duty freestanding fryer designed for restaurants, takeaways, hotels, cafés and busy commercial kitchens. Featuring two independently operated stainless steel frying tanks and twin baskets, it allows operators to cook different foods separately or reduce energy consumption during quieter service periods by using a single tank.

Manufactured by Hamoki, this professional fryer features a durable stainless steel front with galvanised steel sides, providing a robust construction suitable for demanding commercial environments. The integrated rear splashback helps contain oil splashes while maintaining a cleaner working area.

Each tank is heated by vertical cast-iron burners, with each burner rated at 30,000 BTU per hour. The tube-style heating system incorporates internal baffles to improve heat transfer through the cooking oil, providing prompt temperature recovery between cooking cycles to help maintain consistent frying performance.

Each tank incorporates a cold zone beneath the heating tubes, allowing food particles to settle away from the hottest area of the fryer. This helps reduce scorching of debris and supports cleaner cooking oil during service.

Temperature is controlled using adjustable thermostats operating between 93°C and 204°C, allowing accurate heat control for a variety of fried foods. A high-limit safety device activates at 232°C (450°F) to help protect the appliance against overheating.

A continuous pilot system provides convenient ignition of the main burners, while separate ¾-inch drain valves allow used cooking oil to be removed efficiently during cleaning and maintenance.

The fryer is supplied with two chrome-plated frying baskets featuring plastic-coated handles for comfortable handling. Six-inch heavy-duty stainless steel legs with height-adjustable feet provide a stable installation and allow the appliance to be levelled on uneven floors.

Combining twin independent tanks, rapid heat recovery and durable commercial construction, the Hamoki GF120T is a practical solution for high-volume professional frying operations.

• Hamoki heavy-duty commercial gas fryer
• Freestanding twin-tank design
• Two independently operated frying tanks
• Four vertical cast-iron burners
• Each burner rated at 30,000 BTU per hour
• Stainless steel split vats
• Stainless steel front with galvanised steel sides
• Tube-style heating system with internal baffles
• Designed for improved heat transfer
• Prompt temperature recovery
• Cold zones help reduce scorching of food particles
• Adjustable thermostat from 93°C to 204°C
• High-limit safety protection at 232°C
• Continuous pilot ignition
• Two ¾-inch drain valves for easier oil removal
• Two chrome-plated frying baskets
• Plastic-coated basket handles
• Six-inch stainless steel adjustable legs
• Height-adjustable feet

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

INSTRUCTION MANUAL
EXPLODED DRAWING & PARTS LIST
OVERALL DRAWING
TANK DRAWING

Model Number: GF120T
