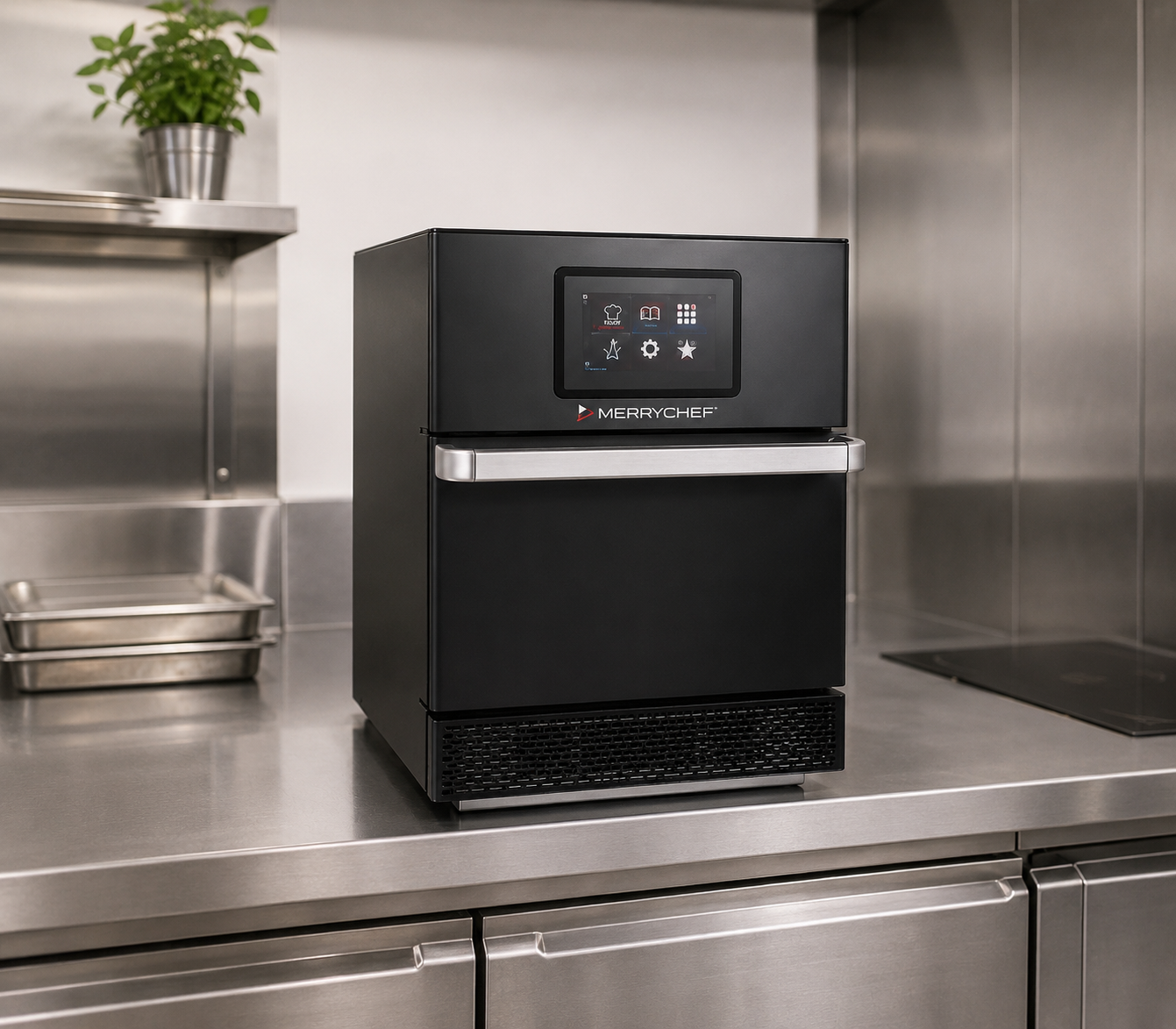

Welbilt - Merrychef Connex 16 (Black) 32amp Twin Phase High Speed Ovens
Welbilt - Merrychef Connex 16 (Black) 32amp Twin Phase High Speed Ovens
VAT included
Currently this item has stock!
Couldn't load pickup availability
Dimensions: 458.8 x 683.4 x 619mm
Cooking Area: 412.8 x 412.8mm
Net Weight: 67.2kg
Temperature Range: 100°C to 275°C
Microwave Output: 2000W
Convected Heat Output: 3200W
Maximum Power Input: Up to 6000W – Model Dependent
Electrical Supply: 220–230V Single Phase or 380–400V Twin Phase – Model Dependent
Control: 7" HD easyTouch® 2.0 Touchscreen
Ventilation: Built-In Catalytic Filtration / Ventless Capability
The Merrychef conneX 16 High Speed Oven is a powerful commercial rapid-cook oven designed to cook, toast, grill and reheat fresh or frozen food from a compact countertop footprint. Using a combination of microwave, convection and tuned impingement technology, the conneX 16 is designed to deliver fast, consistent cooking while producing an evenly browned, crisp finish.
With a generous 16" x 16" cooking area inside a cabinet measuring just 458.8mm wide, the conneX 16 offers an excellent cooking-capacity-to-footprint ratio. It is designed to fit on a 700mm worktop, making it particularly useful for cafés, restaurants, convenience food operations, hotels and other commercial kitchens where counter space is limited.
High Speed Cooking Performance
Merrychef's high-speed cooking system combines three heating technologies:
- Microwave
- Convection
- Tuned impingement
The microwave system provides up to 2000W output and uses a rotating active antenna to distribute microwave energy throughout the food. Convection heat operates between 100°C and 275°C, while the tuned impingement system directs heated air across the food to promote even browning and crisping.
7" easyTouch® 2.0 Controls
The conneX 16 features a 7-inch HD colour touchscreen with Merrychef's easyTouch® 2.0 interface.
The icon-driven control system supports unlimited multi-stage cooking profiles, with each recipe capable of incorporating up to six cooking stages. Cooking time, microwave power and on-screen written or pictorial instructions can all be programmed into the cooking profile to help staff achieve consistent results.
Wi-Fi, Ethernet & Cloud Connectivity
Built-in Wi-Fi and Ethernet connectivity allows the conneX 16 to connect to Merrychef's KitchenConnect cloud platform, enabling menu updates and recipe management.
Cooking profiles and data can also be transferred using a USB memory stick, making it easier to standardise menus across multiple locations.
Ventless Cooking Capability
The conneX 16 incorporates internal catalytic filtration designed to reduce grease and odour emissions. The oven is stated as EPA 202 ventless certified, allowing ventless installation in suitable applications.
This can make the unit particularly attractive for front-of-house counters and sites where installing a dedicated extraction system would otherwise be difficult. Installation suitability should still be confirmed against the intended menu and local ventilation requirements.
Easy Cleaning & Maintenance
The oven features a stainless steel cavity and casework, with a sealed cavity and rounded edges designed to simplify cleaning.
A patented front-mounted monitored air filter provides easy access for routine maintenance, while the cool-touch exterior allows the oven to be positioned without requiring side clearance. Merrychef specifies 50mm clearance above the oven, and the unit is not intended to be built into cabinetry.
Included Accessories
The conneX 16 is supplied with:
- Flat cook plate
- Guarded hand paddle with supporting side walls
- Full-size cooking tray
- Cool-down pan
- Cook plate liner
Key Features
- Commercial high-speed rapid cook oven
- Large 412.8 x 412.8mm cooking area
- Compact 458.8mm-wide footprint
- Designed to fit on a 700mm worktop
- Microwave, convection and tuned impingement cooking
- Up to 2000W microwave output
- 3200W convected heat output
- Temperature range of 100°C to 275°C
- Microwave power adjustable from 5–100% in 1% increments
- 7" HD easyTouch® 2.0 touchscreen
- Unlimited programmable cooking profiles
- Up to 6 cooking stages per recipe
- Wi-Fi and Ethernet connectivity
- KitchenConnect cloud compatibility
- USB menu and data transfer
- Built-in catalytic filtration
- EPA 202 ventless certification
- Stainless steel cavity and casework
- Rounded, sealed cooking cavity
- Front-mounted monitored air filter
- Cool-touch exterior
- Available in stainless steel or carbon black
- Net weight 67.2kg
